Understand the Temporary Allocator; Understand arenas

Odin is a manually memory managed language. Beginners of such languages are often afraid of memory leaks, meaning that you forget to deallocate memory.

The first remedy for this is to use the tracking allocator. It will warn you about memory you forgot to deallocate. Nifty!

But you can also think along these lines: Can I simplify things a bit, so I don’t have to think about the deallocation?

What you can do is to try to use the temporary allocator whenever possible. Let’s look at a real-world example.

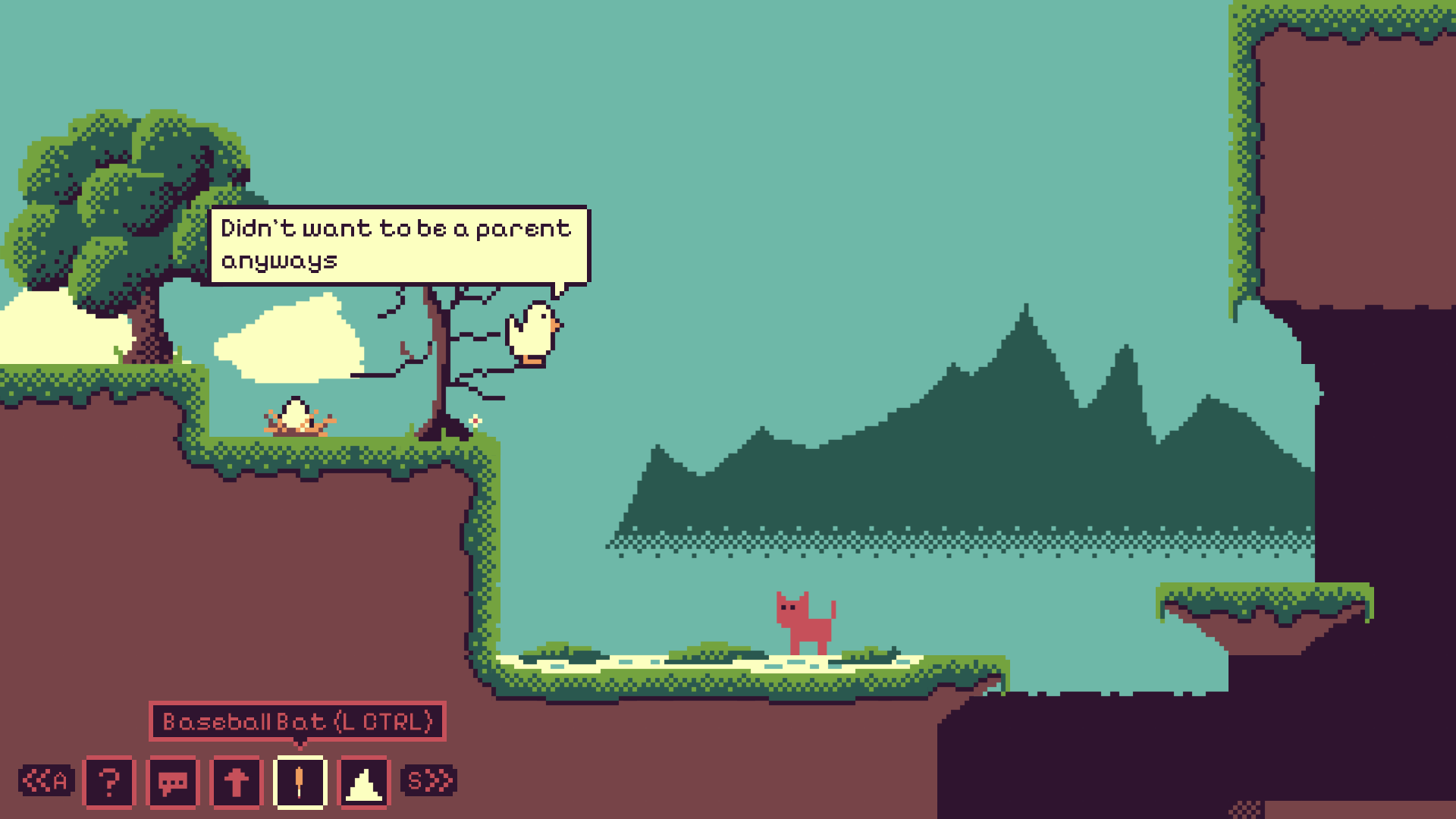

In my game CAT & ONION I draw a UI that shows all the player’s possible actions. You see this UI in the bottom left of this screenshot:

This list of possible actions is returned by the procedure below. It returns a dynamic array of PlayerAction objects. This array contains all all the possible actions of the player. There are three actions you can always do, and then an unknown number of actions available based on what you have in your inventory. The calls to append will cause dynamic allocations when the dynamic array actions needs to grow. This first version does not use the temporary allocator, we’ll add in the temporary allocator shortly.

get_all_player_actions :: proc() -> [dynamic]PlayerAction {
	actions: [dynamic]PlayerAction

	append(&actions, PlayerAction {
		type = .Inspect,
	})

	append(&actions, PlayerAction {
		type = .Talk,
	})

	append(&actions, PlayerAction {
		type = .Pickup,
	})

	for i in g_mem.inventory.items {
		append(&actions, PlayerAction {
			type = .UseItem,
			item = i.item,
			added_at = i.added_at,
			item_original_screen_pos = i.original_screen_pos,
		})
	}

	return actions
}

Here is some code that runs the procedure and then displays all the actions on the screen:

actions := get_all_player_actions()

for a in actions {
	draw_action_icon(a)
}

delete(actions)

Note how we loop over the list of actions and draw an icon for each. After the loop I call delete(actions), because the calls to append within get_all_player_actions caused dynamic allocations. Forgetting the call to delete would leak the allocated memory. Since this UI drawing code runs each frame of the game, it would cause the game’s memory usage to continuously grow: A classic memory leak. The tracking allocator would catch these leaks. But it would be nice if I never had to worry about this at all, tracking allocator or no tracking allocator.

That’s where the temporary allocator comes in.

In the game I actually only need the list of actions to be around for drawing or doing some logic checks. With that in mind, the actual code that I use in CAT & ONION is the following. The only difference is the first line of the procedure: When I create the actions array, I tell it to use the temporary allocator.

get_all_player_actions :: proc() -> [dynamic]PlayerAction {
	actions := make([dynamic]PlayerAction, context.temp_allocator)

	append(&actions, PlayerAction {
		type = .Inspect,
	})

	append(&actions, PlayerAction {
		type = .Talk,
	})

	append(&actions, PlayerAction {
		type = .Pickup,
	})

	for i in g_mem.inventory.items {
		append(&actions, PlayerAction {
			type = .UseItem,
			item = i.item,
			added_at = i.added_at,
			item_original_screen_pos = i.original_screen_pos,
		})
	}

	return actions
}

The line actions := make([dynamic]PlayerAction, context.temp_allocator) does not cause any allocation. It just returns a dynamic array with its internal allocator field set to context.temp_allocator. The allocations happen later, as append runs. The dynamic array will need to grow at least once (it has the initial size of zero). When growing, it will use the temporary allocator we fed into make.

This “internal allocator field” exists on the struct Raw_Dynamic_Array, which is the type that a dynamic array uses “behind the scenes”. You can see that type here: https://pkg.odin-lang.org/base/runtime/#Raw_Dynamic_Array

Everything that goes into the temporary allocator is valid until you clear it. You clear it by placing free_all(context.temp_allocator) somewhere in your program. In games that often happens at the “end of each frame”:

main :: proc() {
	for game_should_run {
		update()
		draw()
		free_all(context.temp_allocator)
	}
}

Now when drawing the icons, I can skip the delete(actions) line:

actions := get_all_player_actions()

for a in actions {
	draw_action_icon(a)
}

The actions array will thus be valid until free_all(context.temp_allocator) happens, meaning until the end of frame.

Your first arena allocator

You may have heard about arena allocators. You may be a bit confused about when it is a good idea to use them.

An arena allocator has the property that all the allocations into it shares a common lifetime. This means that they will all get deallocated at the same time.

If you look back at the code above, then you see that everything on the temporary allocator has the lifetime of a single frame, because we clear it at the end of the frame.

In other words: The temporary allocator is an arena allocator. It has a predetermined use-case (temporary things), but you chose what temporary means (when do you clear it? What is the lifetime?)

In video games the line free_all(context.temp_allocator) is very easy to place: At the end of the frame. It’s an unusually easy-to-spot lifetime that is shared by an abundance of allocations. It’s a blessed thing about video games. Need a list of player actions? Just return a temporary allocated array. Need to draw a formatted string on the screen each frame? Just temporary allocate it and draw. Need to store an array of intermediate calculations? Allocate the array using the temporary allocator.

For non-games the line free_all(context.temp_allocator) is sometimes harder to place, because there may not be an obvious “frame loop”. It’s OK to simply not use the temporary allocator in that case! Use a tool when it helps you. But remember: The temporary allocator is just a special arena allocator. You can make your own arena allocators when you realize that a few things share a common lifetime (read more about creating arenas in a previous blog post). However, don’t try to force things into an arena. Just use the default heap allocator when in doubt. With time you’ll notice things of common lifetime, and at that moment you can experiment with custom arenas.

If you enjoyed this post and want to learn more about Odin, then check out my eBook “Understanding the Odin Programming Language”: https://odinbook.com

Have a nice day! /Karl Zylinski
